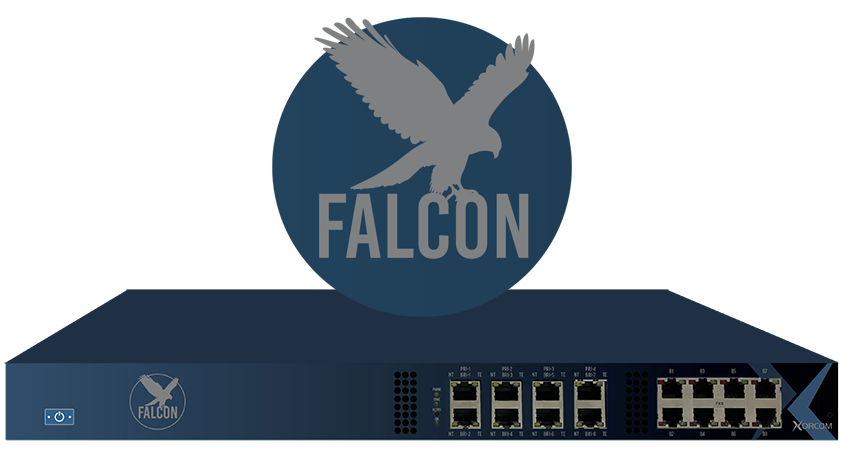

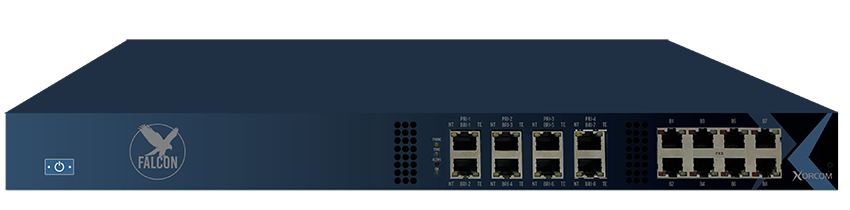

Falcon CXW3000
Heavy-Duty IP PBX
The Falcon (CXW3000) is a heavy-duty PBX system featuring the Xorcom CompletePBX 5 operating systems, for mid-range & enterprise customers and high-density systems. Equipped with an Intel i3-14100T processor 12MB Cache running at 2.7 GHz, NVMe PCIe Gen4 SSD drive, the CXW3000 offers robust performance. Within its compact 19″ 1U chassis, the CXW3000 can accommodate up to 16 analog ports, eight BRI ISDN ports, and four E1/T1 PRI, T1 CAS, or E1 R2 ports.

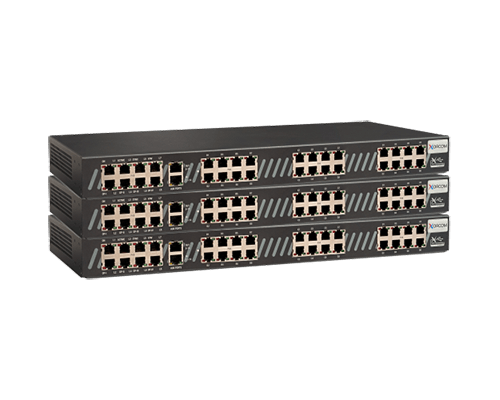

To further expand its capabilities, external Astribank units can be connected via USB ports, enabling support for up to 960 PSTN/analog phone ports, 24 E1 R2 / T1 PRI ports, up to 2,000 users, and 900 concurrent calls. Alternatively, IP gateways can be utilized to connect analog phones. This flexibility allows for customized configurations tailored to specific communication needs.
More Users
Up to 2,000 users*
* Unit is licensed to 1,000 users by default, expandable up to 2,000
More Concurrent Calls
Up to 900 concurrent calls (SIP only); 600 (PRI + FXS)
Ideal heavy duty systems.
More Connectivity
4 x 1 GB built in Ethernet ports
For maximum connectivity
IPMI remote management port
More Storage Speed
3x faster storage*
500 GB NVMe PCIe Gen4 SSD
More Memory
100% more RAM*
16GB in basic configuration
More Power
50% more CPU threads*
More cache, speed, power
* In comparison with previous Blue Steel 2U models
Smaller Size
1U frame
50% less rack space
Legacy Telephony
Up to 2 telephony modules
Up to 16
External Expansions
Additional gateways and Astribanks can be added
Cooling
Variable speed fan array
