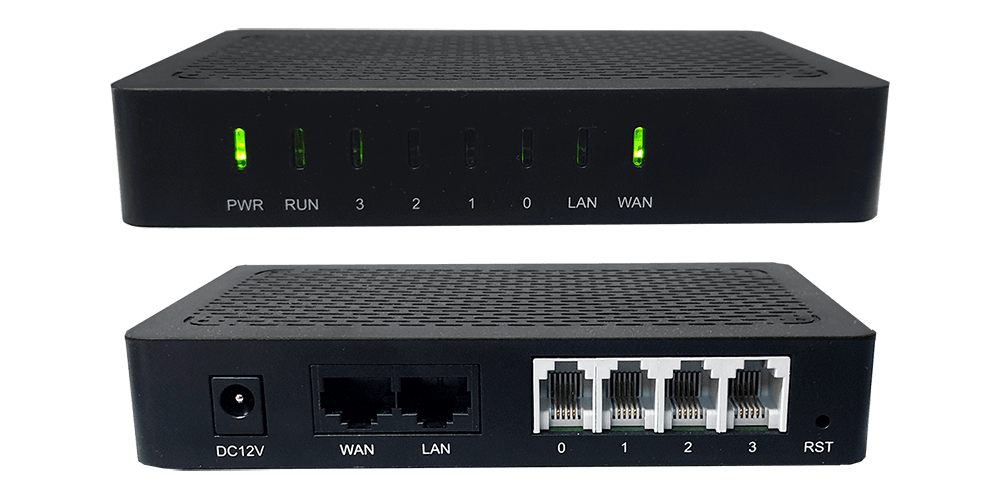

GW0003 - 4 FXS Analog VoIP Gateway

by Xorcom
FXS VoIP Gateway

GW0003 – FXS analog VoIP gateway

GW0003 is a multi-functional analog gateway offering seamless connectivity between IP-based telephony networks and legacy telephones (POTS), fax machines and PBX systems. The device offers 4 FXS ports, fax over IP and flexible dial plans. It is ideally suited for small and medium businesses, call centers and multi-location environments that need VoIP services.

GW0003 supports the standard SIP protocol and it’s compatible with leading IMS/NGN platforms and SIP-based IP telephony systems.

Key features

  • Cost effective gateway with 4 FXS ports
  • Fax over IP (T.38 and Pass-Through)
  • Support IPv4 and IPv6
  • TR069 and SNMP
  • Elastix/Broadsoft Certification
  • Multiple codecs: G.711A/U,G.723.1,G.729A/B, iLBC
  • Fully compatible with leading IMS/NGN, SIP based IP telephony system

Physical Interfaces

  • Capacity
          4 FXS, RJ11
  • Ethernet Interfaces:
          1* WAN, 10/100Mbps, RJ-45
          1* LAN, 10/100Mbps,  RJ-45
  • Console
          N/A

FXS

  • Connector: RJ11
  • Dial Mode: DTMF and Pulse
  • Pulse: 10 and 20 PPS
  • Caller ID: DTMF/FSK CLI Presentation
  • Max Cable Length: 3KM
  • Reversed Polarity
  • Programmable Call Progress Tone

Voice & Fax

  • G.711A/U law, G.723.1,
    G.729A/B,G.726,iLBC
  • Silence Suppression
  • Comfort Noise Generation (CNG)
  • Voice Activity Detection (VAD)
  • Echo Cancellation(G.168), with up to 128ms
  • Adaptive (Dynamic) Jitter Buffer
  • Hook Flash
  • Programmable Gain Control
  • T.38/Pass-through
  • Modem/POS
  • DTMF mode: Signal/RFC2833/INBAND
  • VLAN 802.1P/802.1Q
  • Layer3 QoS and DiffServ

VoIP

  • Protocol: SIP v2.0 (UDP/TCP),RFC3261
         SDP,RTP(RFC2833), RFC3262,
         3263,3264,3265,3515,2976,3311
  • RTP/RTCP, RFC2198, 1889
  • RFC4028 Session Timer
  • RFC3266 IPv6 in SDP
  • RFC2806 TEL URI
  • RFC3581  NAT,rport
  • Primary/Backup SIP Server
  • Outbound Proxy
  • DNS SRV/ A Query/NATPR Query
  • SIP Trunk
  • Early Media/Early Answer
  • NAT:STUN, Static/Dynamic NAT

Supplementary Service

  • Call Waiting
  • Blind  Transfer
  • Attend Transfer
  • Call Forward on Busy
  • Call Forward on No Reply
  • Unconditional Call Forward
  • Warm/Immediately Hotline
  • Call Hold
  • Do-not-disturb
  • 3-Way Conference
  • Message Waiting Indicator

Maintenace

  • SNMP v1/v2/v3
  • TR069
  • Auto Provisioning
  • Web/Telnet
  • Configuration Backup/Restore
  • Firmware Upgrade via Web
  • CDR
  • Syslog
  • Ping/Tracert Test
  • Network Capture
  • Outward Test(GR909)
  • NTP/Daylight Saving Time
  • IVR local Maintenance
  • Cloud-based Management

Software Features

  • Hunting Group
  • Web ACL
  • Telnet ACL
  • Action URL
  • PPPoE/IPv4/IPv6
  • Digitmap
  • Bandwidth Optimization
  • Routing Rules based Prefixes
  • Caller/Called Number Manipulation

Environmental

  • Power Supply:
    100-240VAC, 50-60 [email protected] 1A
  • Power Consumption: 5W (Typical)
  • Operating Temperature:0 ℃ ~ 40 ℃
  • Storage Temperature: -20 ℃ ~80 ℃
  • Humidity:10%-90% Non-Condensing
  • Dimensions(W/D/H): 140*86*25mm
  • Unit Weight: 0.2kg
  • Compliance: CE, FCC
