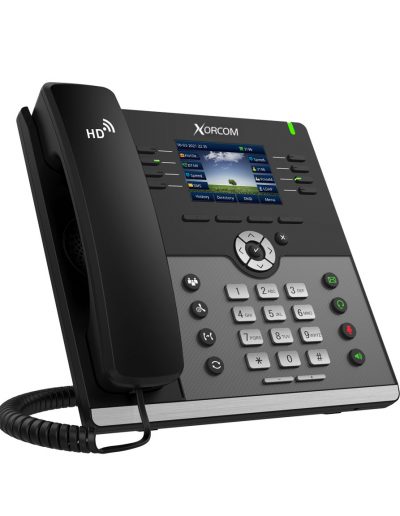

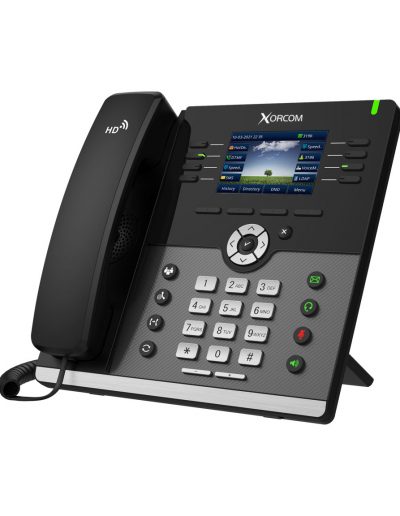

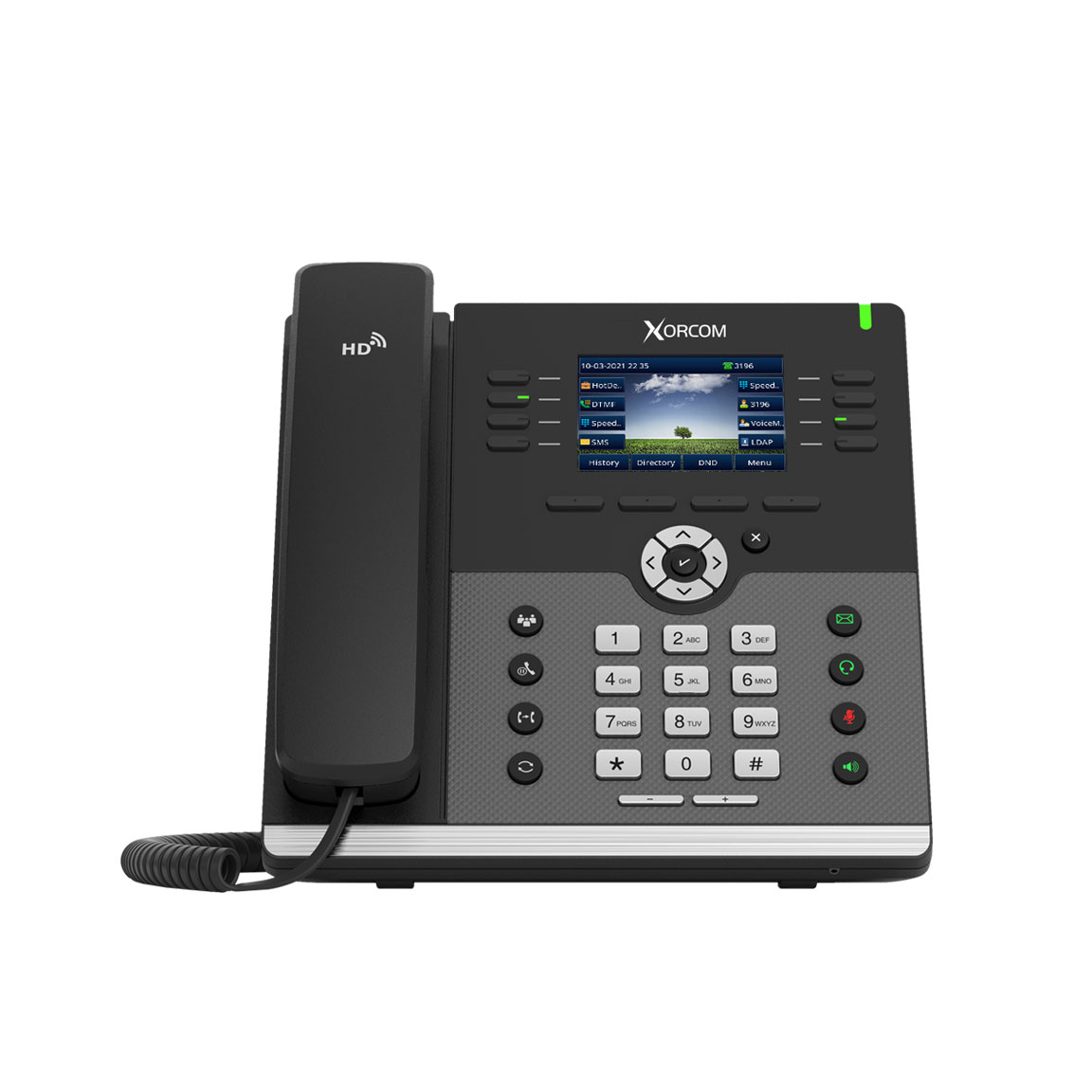

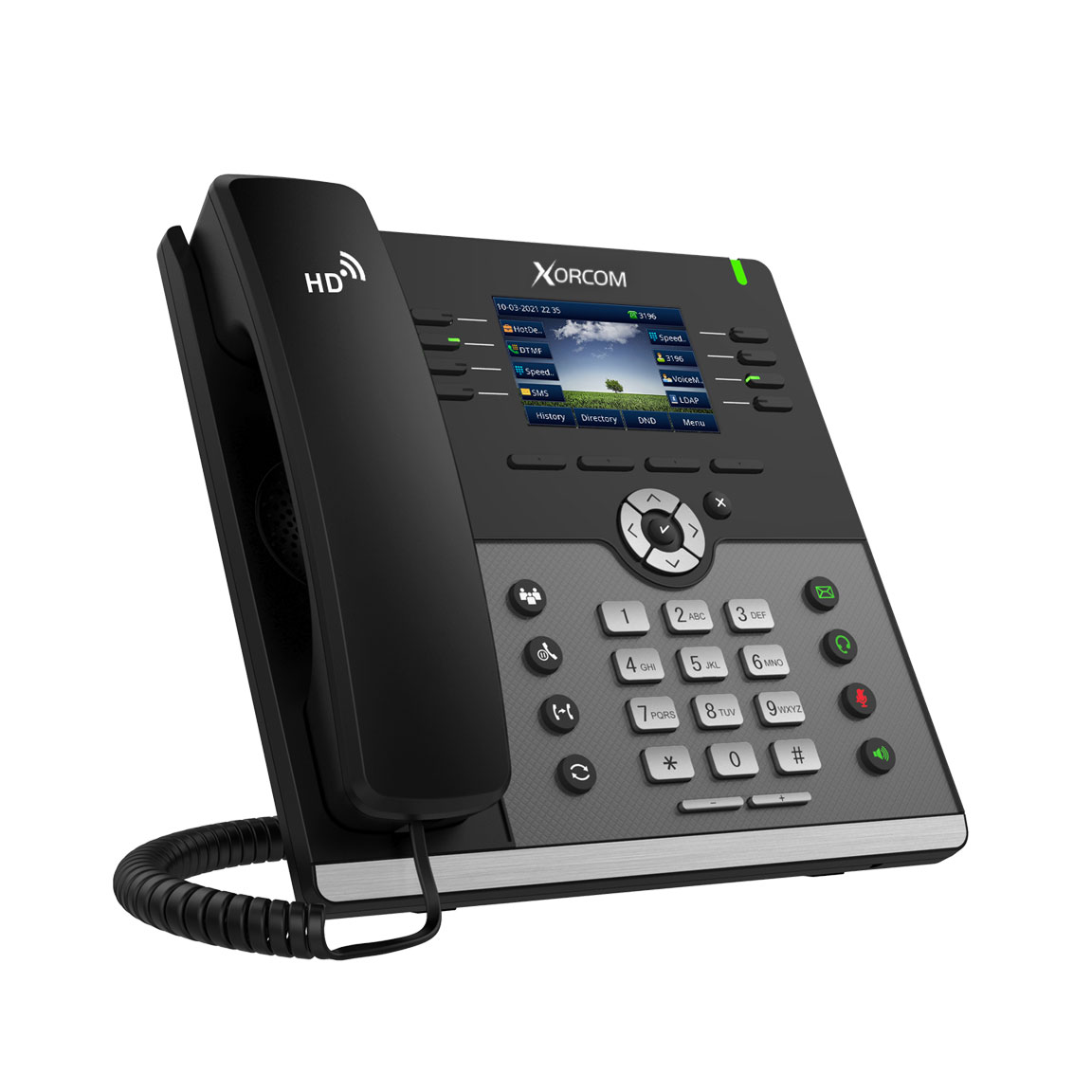

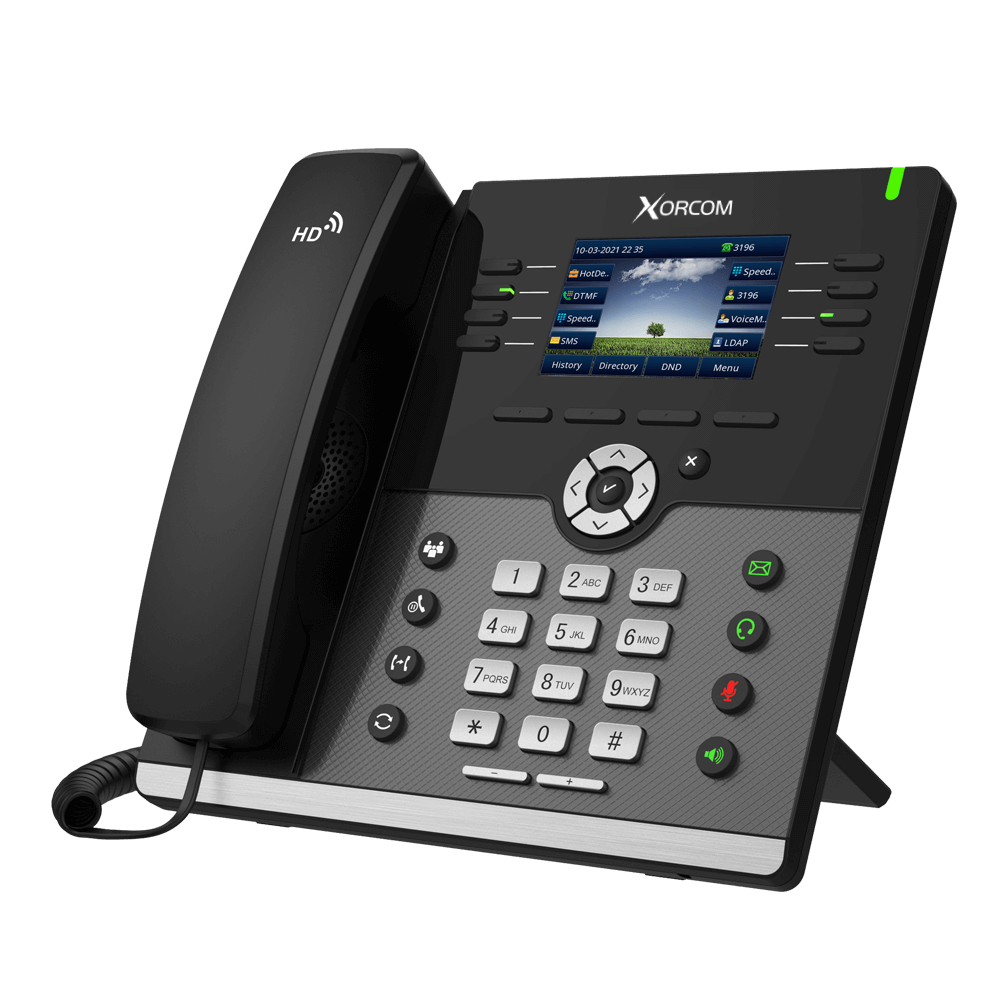

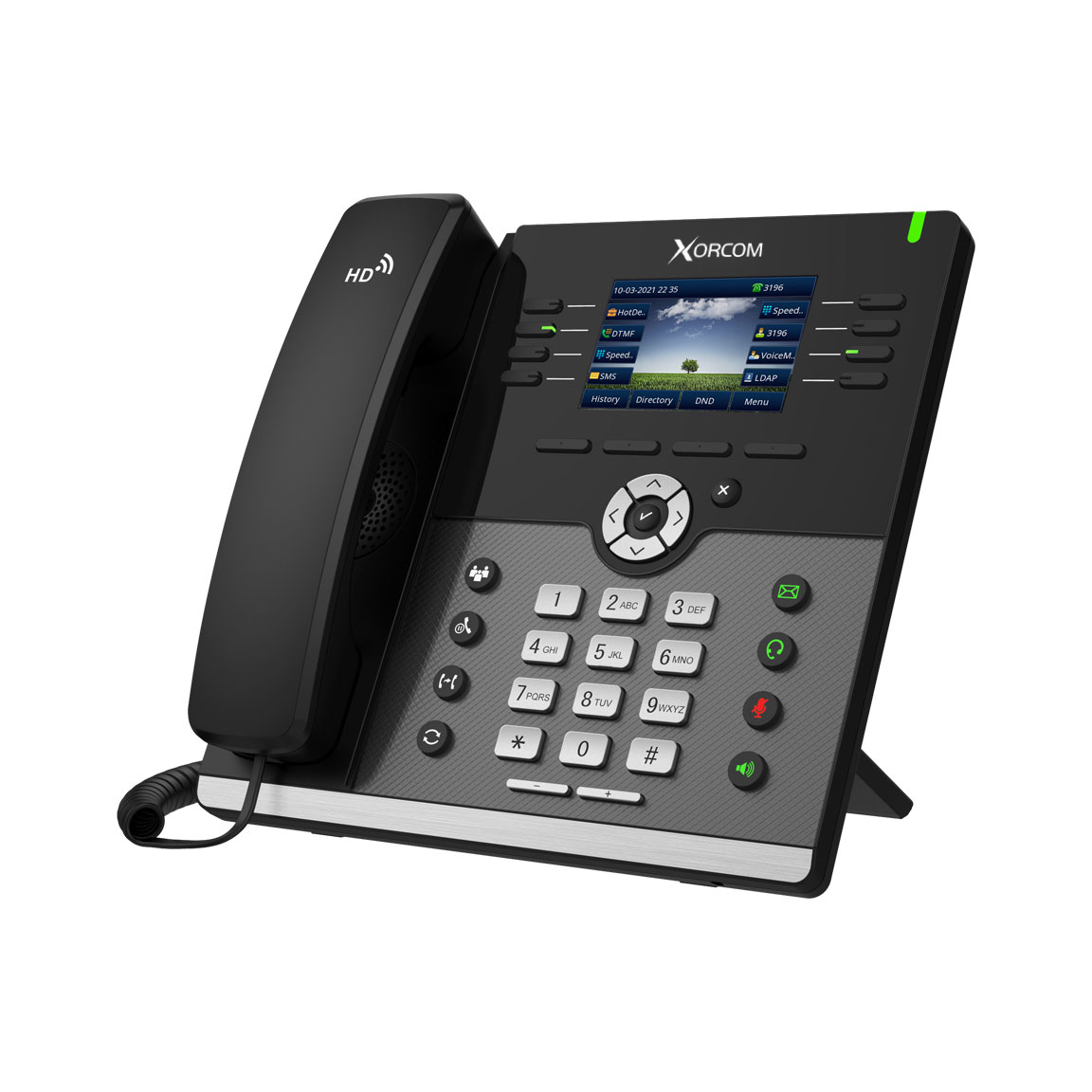

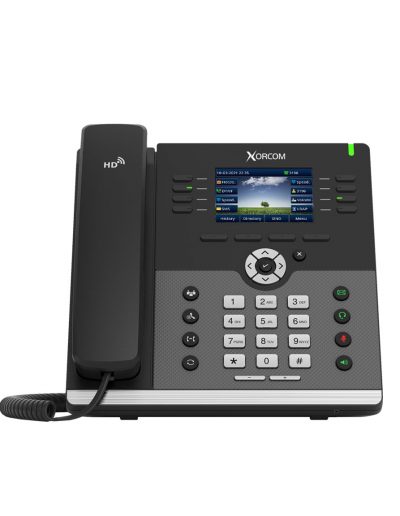

Xorcom UC924U Gigabit Color IP Phone
5-way conference, high-resolution TFT-LCD and HD Voice
- Up to 12 SIP accounts
- 8 line keys with LED
- Paperless DSS keys up to 36 various features
- 3.5″ 480 x 320-pixel color display with backlight, 16 bit depth color
UC924U is an innovative Gigabit Color IP Phone with 3.5” 480*320 pixel TFT-LCD. It supports up to 5-way conference. Its USB2.0 interface allows you to connect an external USB flash drive, which greatly expands the storage space of the IP Phone. Up to 6 expansion modules can be connected. It supports up to 5-way conference. UC924U is optimized for executive use for major decision makers, administrative assistants and those working with bandwidth-intensive application on collocated PCs.
Technical specifications
Phone Features
- 12 SIP accounts
- Call hold, mute, DND
- One-touch speed dial, hotline
- Call forward, call waiting, call transfer
- Redial, call return, auto answer, direct IP call
- 5-way conferencing
- Group listening, SMS, emergency call
- Ring tone selection/provisioning
- Set date time automatically or manually
- Dial plan per account
- RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)
- Action URL/URI
- USB port(2.0 compliant) for: USB call recording throgh USB flash drive; USB storage (screen saver, wallpaper)
Voice Codecs Features
-
HD voice, HD handset, HD speaker
-
Codecs: iLBC, G.722, G.711(A/μ), Opus, G.723.1, G.729AB
-
G.726-32 , G.722.1, AMR-WB(G.722.2)
-
DTMF: In-band, RFC 2833, SIP INFO
-
Full-duplex hands-free speakerphone with AEC
-
AEC, VAD, AGC, CNG, PLC, AJB, JIB
Directory
-
Local phonebook up to 10000 entries
-
XML/LDAP remote phonebook
-
Intelligent search method
-
Phonebook search/import/export
-
Call history: dialed/received/missed/forwarded
-
Black list
IP-PBX Features
-
Busy Lamp Field (BLF), bridged Line Appearance(BLA)
-
Anonymous call, anonymous call rejection
-
Hot-desking , voice mail
-
Call park, call pickup
-
Intercom, paging
-
Music on hold
-
Flexible seating
-
Call recording
Display and Indicator
-
3.5″ 480 x 320-pixel color display with backlight
-
24 bit depth color
-
LED for call and message waiting indication
-
Dual-color (red or green) illuminated
-
LEDs for line status information
-
Wallpaper, national language selection
-
Intuitive user interface with icons and soft keys
-
Caller ID with name, number and photo
Feature keys
-
8 line keys with LED
- Paperless DSS keys up to 28 various features (4-page view)
- 8 feature keys: voice mail, headset, mute, speaker, conference, hold, transfer, redial
- 4 context-sensitive “soft” keys
- 6 navigation keys , volume control keys
Interface
- Dual-port Gigabit Ethernet
- Power over Ethernet (IEEE 802.3af), class 3
- 1xRJ9 (4P4C) handset port
- 1xRJ9 (4P4C) headset port
- Supports up to 6 Expansion Modules
- 1xUSB Port (2.0 compliant)
Physical Features
- Stand with 2 adjustable angles
- Wall mountable
- External universal AC adacpter
- AC 100~240V input and DC 5V/1.2A output
- Power consumption (PSU): 2.0~4.6W
- Power consumption (PoE): 2.5~5.5W
- Operating humidity: 10~95%
- Operating temperature: -10~50°C
Management
- Stand with 2 adjustable angles
- Wall mountable
- External universal AC adapter
- AC 100~240V input and DC 5V/1.2A output
- Power consumption (PSU): 2.0~4.6W
- Power consumption (PoE): 2.5~5.5W
- Operating humidity: 10~95%
- Operating temperature: -10~50°C
Network and Security
- SIP v1 (RFC2543), v2 (RFC3261)
- SIP server/proxy redundancy
- NAT Traversal: STUN mode
- DHCP/static/PPPoE/IEEE802.1X/open VPN
- HTTP/HTTPS web server
- Time and date synchronization by SNTP
- DNS-NAPTR/DNS-SRV(RFC 3263)
- QoS: 802.1p/Q tagging (VLAN), Layer 3 ToS DSCP
- TLS(Transport Layer Security), SRTP
- HTTPS certificate manager
- AES encryption for the configuration file
- Digest authentication using MD5/MD5-sess
- IPv6 supported
Packing
-
Qty/CTN: 10 PCS
-
Phone Size:224MM(L)*220MM(W)
-
N.W/CTN: 14.16 KG
-
Phonebox Size:245MM(L)*225MM(W)*100MM(H)
-
G.W/CTN: 15.16 KG
-
Carton Meas: 525MM(L)*510MM(W)*245MM(H)
