Business IP Phone Xorcom
Business IP Phone Xorcom
Business IP Phone Xorcom
  • 8 SIP accounts, 8 feature keys 8 line keys can be programmed up to 28 various features (4-page view)
  • 2.8” TFT-LCD, 320 x 240 pixel
  • HD Handset,HD Speaker, HD Codec
  • 1 x USB Port (2.0 compliant) for more functions
  • Dual-port Gigabit Ethernet

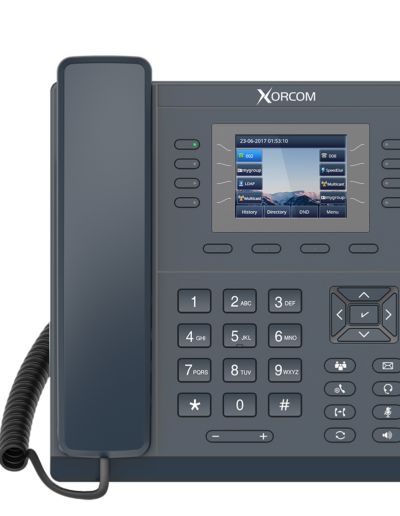

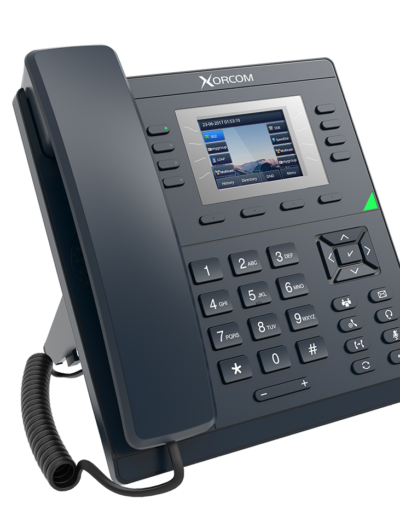

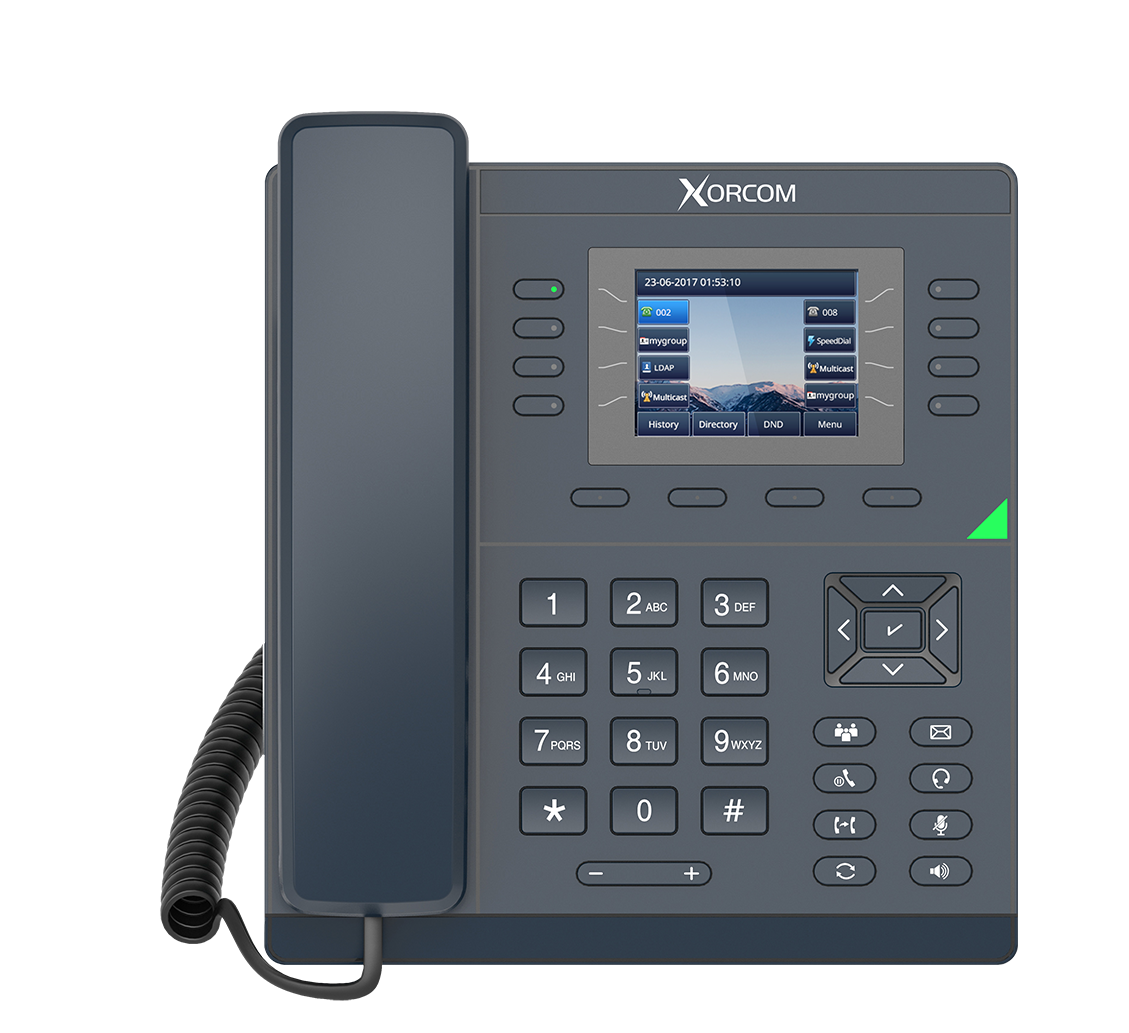

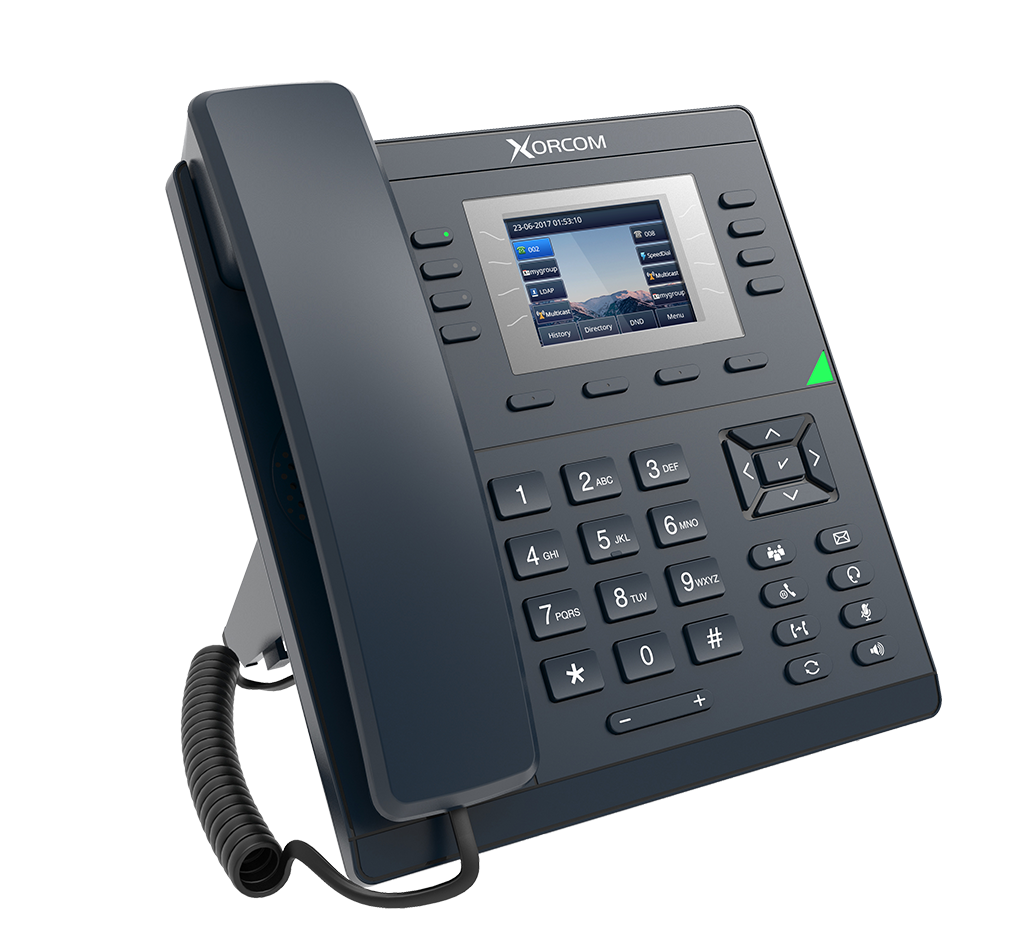

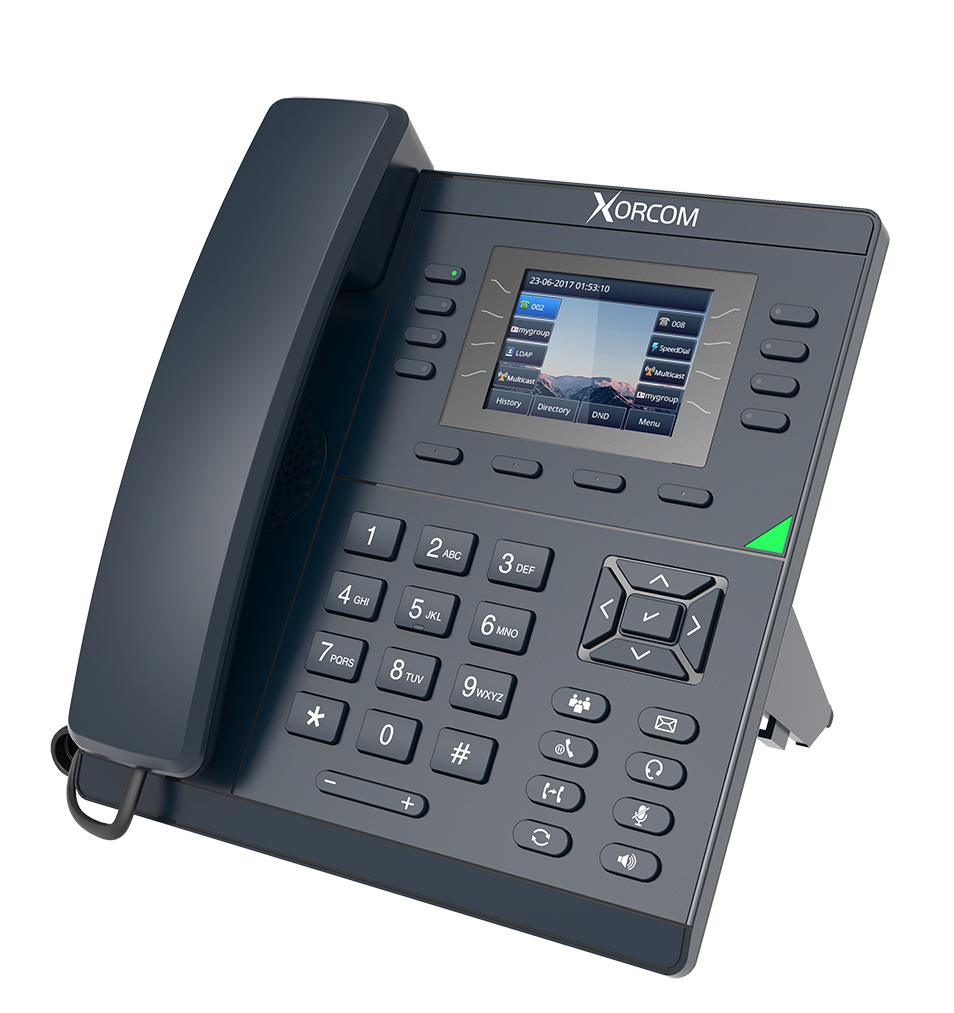

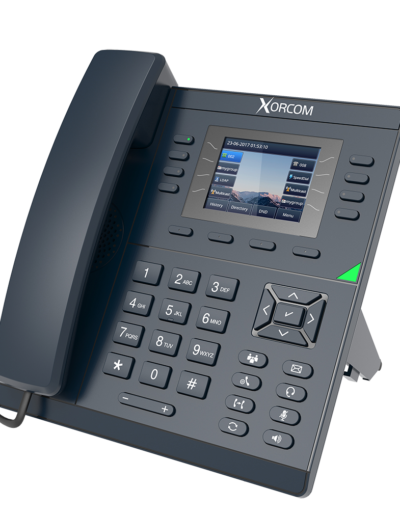

UC505U is an innovative Gigabit Color IP Phone. It is optimized for executive use for major decision makers, administrative assistants, and those working with bandwidth-intensive applications on collocated PCs.

Technical specifications

Phone Features

  • 8 SIP accounts
  • Call hold, mute, DND
  • One-touch speed dial, hotline
  • Call forward, call waiting, call transfer
  • Redial, call return, auto answer, direct IP call
  • 5-way conferencing
  • Group listening, SMS, emergency call
  • Ring tone selection/provisioning
  • Set date time automatically or manually
  • Dial plan for each account
  • RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)
  • Action URL/URI
  • USB port (2.0 compliant) for:
  • USB call recording through USB flash drive
  • USB storage(screen saver, wallpaper)
  • USB headset

Audio Features

  • HD Voice: HD Speaker, HD Handset
  • Codecs: iLBC, G.722, G.711(A/μ), Opus,G.723.1, G.729AB,
  • G.726-32,G.722.1
  • DTMF: In-band, RFC 2833, SIP INFO
  • Full-duplex hands-free speakerphone with AEC
  • AEC, VAD, AGC, CNG, PLC, AJB

Directory

  • Local phonebook up to 10000 entries
  • XML/LDAP remote phonebook
  • Intelligent search method
  • Phonebook search/import/export
  • Call history: dialed/received/missed/forwarded
  • Black list

IP-PBX Features

  • Busy Lamp Field (BLF), Bridged Line Appearance(BLA)
  • Anonymous call, anonymous call rejection
  • Hot-desking, voice mail
  • Call park, call pickup
  • Intercom, paging
  • Music on hold
  • Flexible seating
  • Call recording

Display and Indicator

  • 2.8” 320×240-pixel color display with backlight
  • 24-bit depth color
  • LED for call and message waiting indication
  • Dual-color(red or green) illuminated
  • LEDs for line status information
  • Wallpaper, multi-language selection
  • Intuitive user interface with icons and soft keys
  • Caller ID with name, number, and photo

Feature keys

  • 8 line keys with LED
  • 8 line keys can be programmed up to 28 Paperless DSS keys (4-page view)
  • 8 feature keys: voice mail, headset, mute,
  • speaker, conference, hold, transfer, redial
  • 4 context-sensitive “soft” keys
  • 5 Navigation keys, volume control keys

Interface

  • Dual-port Gigabit Ethernet
  • Power over Ethernet (IEEE 802.3af), class 3
  • 1xRJ9 (4P4C) handset port
  • 1xRJ9 (4P4C) headset port
  • 1xUSB Port(2.0 compliant)
  • 1 x RJ12 (6P6C) EXT port
  • Support EHS

Physical Features

  • Stand with 2 adjustable angles
  • Wall mountable
  • External universal AC adapter:
  • AC 100~240V input and DC 5V/1.2A output
  • Power consumption (PSU): 1.8~4.4W
  • Power consumption (PoE): 2.3~5.3W
  • Operating humidity: 10~95%
  • Operating temperature: -10~50°C

Management

  • Configuration: browser/LCD-Menu/auto-provision
  • Auto provision via HTTP/HTTPS/FTP/TFTP
  • Auto-provision with PnP
  • Reset to factory, reboot
  • Local tracing log export, system log
  • Phone lock for personal privacy protection

Network and Security

  • SIP v1 (RFC2543), v2 (RFC3261)
  • SIP server/proxy redundancy
  • NAT Traversal: STUN mode
  • IP assignment: static/DHCP
  • HTTP/HTTPS web server
  • Time and date synchronization using SNTP
  • DNS-NAPTR/DNS-SRV(RFC 3263)
  • QoS: 802.1p/Q tagging (VLAN), Layer 3 ToS DSCP
  • Transport Layer Security(TLS1.2), SRTP, ZRTP
  • HTTPS certificate manager
  • AES encryption for configuration file
  • Digest authentication using MD5/MD5-sess
  • IEEE802.1X/OpenVPN
  • IPv4/IPv6, LLDP/CDP/DHCP VLAN
